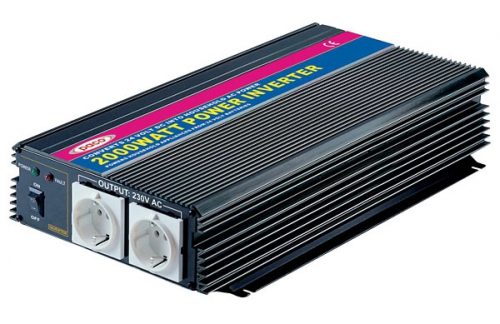

·Model: PI2000-24
·For use in car,boats,trucks,trailers and mobile homes.
·Take the power inverter to portable and get power to run lamps, radios or TVs.
·In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances.
·Ultra-Compact Metal Housing: Small and rugged: stored easily in any tool box, briefcase or glove compartment.
·Integrated Fuse Protection: Protects your battery and power inverter from damage due to outlet overload.
·The inverter can automatically detect low battery voltage and shut down to preserve the battery
·Overload protection: shutdown and alarm (integrated fuse protection, protects the battery, and power inverter from damage due to outlet overload)
·Output short: Output short circuit protection.
·Compliant standards: CB, CE, IEC60950, EN61000, 2006/28/EC
·Battery protection reverse: By fuse.

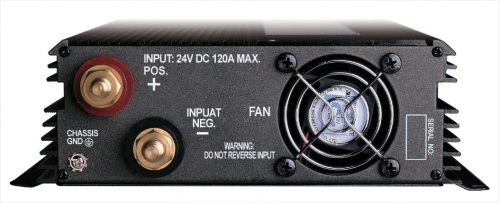

·DC input voltage: 24V DC, 91.6A, (20-30V)
·Input standby current (24V DC,+/-5%): ≤0.6A
·AC output voltage: 230V AC / 110V AC, +/-8%
·Output power: 2000W, 8.7A
·Output power (peak watts): 4000W
·Output frequency: 50 or 60Hz
·Output waveform: Modified sine wave
·Low-battery voltage alarm: 21.0V +/-1V
·Low-battery voltage shutdown: 20.0V +/-1V
·Fuse quantity & size: 10A×12, Standard auto blade fuse (Internal*)
·Efficiency: 85 to 90%
·Thermal shutdown: 65?+/-5?
·Cooling fan: Yes auto-operation fan (temperature or load)
·Connection cable: 16.0mm2 / 1100mm.
·Operating temperature: 0~40?
·Storage temperature: -15?~45?
·Operating relative humidity: 10%RH~102%RH
·Machine size(mm): 430×198×70
·N.W.(Kgs): 5.2Kg
