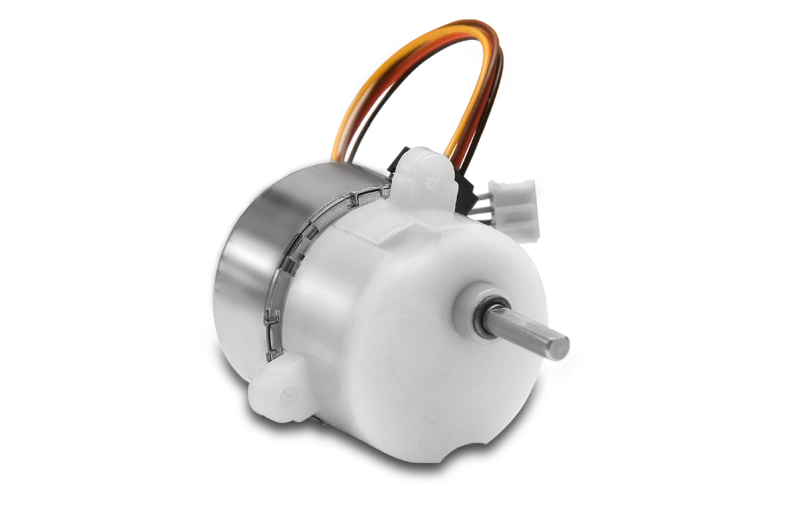

SM138.35S.12 – Step motor Max Speed 122 rpm

Name: SM138.35S.12 - Step motor Max Speed 122 rpm
SKU: SM138.35S.12
Availability: InStock

COD: SM138.35S.12

• High Torque • Low noise • Small size

€26,50

Disponibile

Aggiungi alla Wishlist

Sei un rivenditore o un'azienda? Richiedi offerta con un quantitativo

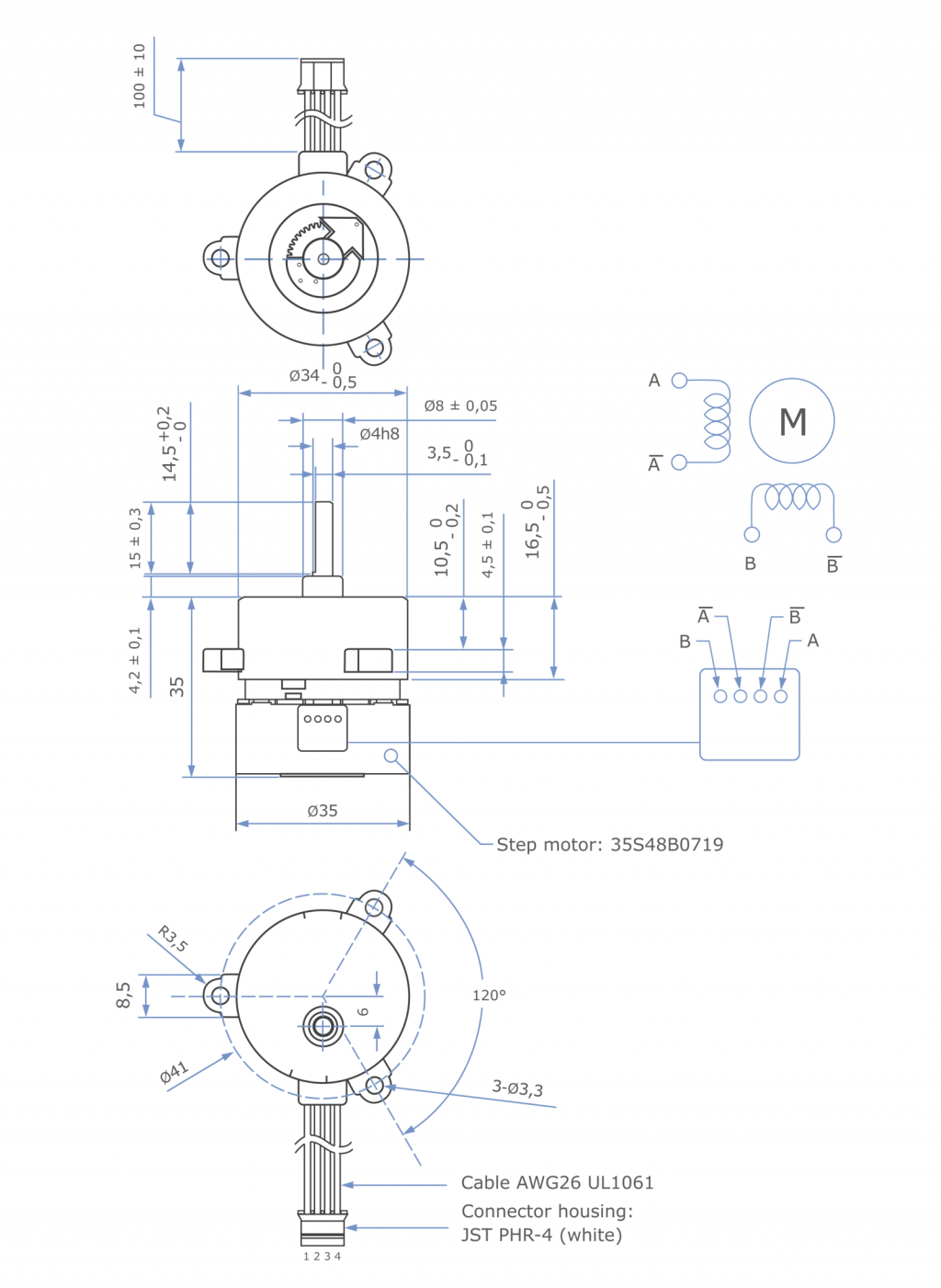

MOTORE PASSO-PASSO 35S48B07 con riduttore 138

Motor Step Angle: 7,5° full step
Number of Phases: 2 bipolar
Insulation resistance: 100MΩ 500Vdc
Nominal Voltage: 12V
Driver voltage range:3,75 – 36V
Max acial/radial shaft load: 5N /20N
Max allowed torque: 50Ncm
Max current (continuous): 250mA
Max Current (intermittent): 500mA
Operating temperature: -20°C / +65°C
