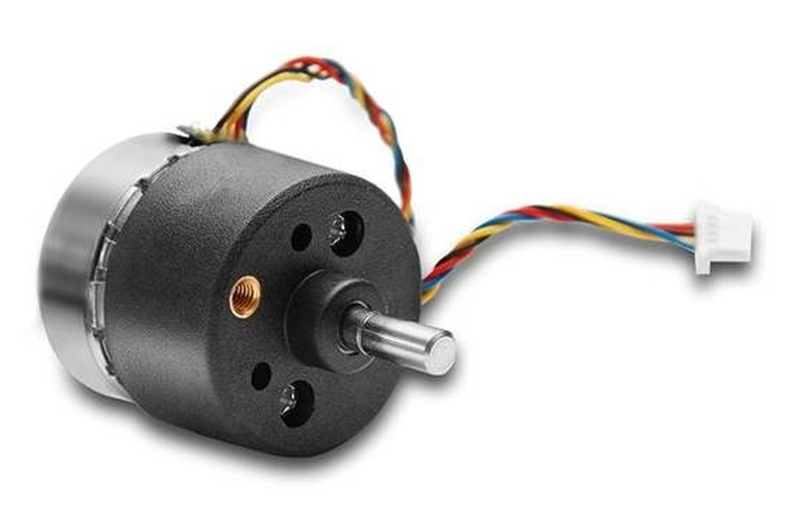

SM149.25T.90 – Step motor Max Speed 17 rpm

Name: SM149.25T.90 - Step motor Max Speed 17 rpm
SKU: SM149.25T.90
Availability: InStock

COD: SM149.25T.90

• High Torque • Low noise • Small size

€26,00

Disponibile

Aggiungi alla Wishlist

Sei un rivenditore o un'azienda? Richiedi offerta con un quantitativo

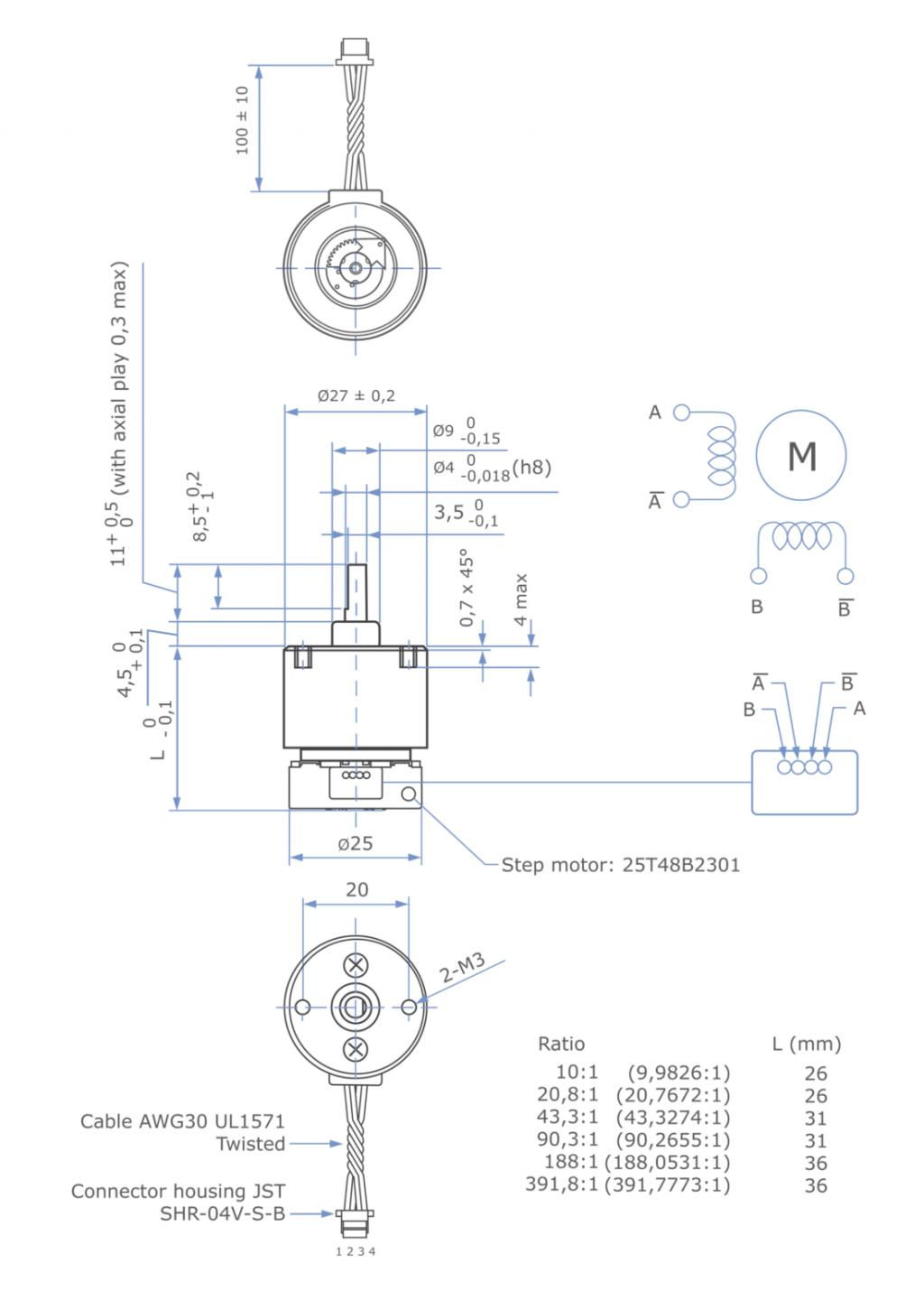

MOTORE PASSO-PASSO 25T48B23 con riduttore 149

Motor Step Angle: 7,5° full step
Number of Phases: 2 bipolar
Insulation resistance: 100MΩ 500Vdc
Nominal Voltage: 12V
Driver voltage range: 9.2-36V
Max acial/radial shaft load: 5N /10N
Max allowed torque: 20Ncm
Max current (continuous): 150mA
Max Current (intermittent): 400mA
Operating temperature: -20°C / +65°C
Approx Weight: 40g
