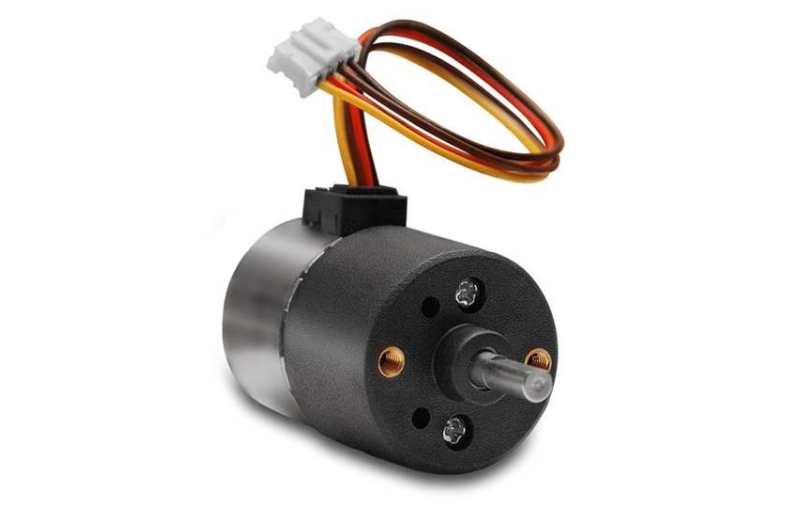

SM155.25L.90 – Step motor Max Speed 17 rpm

COD: SM155.25L.90

• High Torque • Low noise • Small size

€25,50

Esaurito

Sei un rivenditore o un'azienda? Richiedi offerta con un quantitativo

MOTORE PASSO-PASSO 25L48B09 con riduttore 155

Motor Step Angle: 7,5° full step
Number of Phases: 2 bipolar
Insulation resistance: 100MΩ 500Vdc
Nominal Voltage: 12V
Driver voltage range: 3.6-36V
Max acial/radial shaft load: 5N /10N
Max allowed torque: 25Ncm
Max current (continuous): 250mA
Max Current (intermittent): 500mA
Operating temperature: -25°C / +65°C
Approx Weight: 60g



Peso 0,06 kg

Warning: Trying to access array offset on value of type bool in /var/www/paolettielettronica.it/paolettiferrero/web/app/themes/paolettiferrero/functions.php on line 340

Warning: Trying to access array offset on value of type bool in /var/www/paolettielettronica.it/paolettiferrero/web/app/themes/paolettiferrero/functions.php on line 341

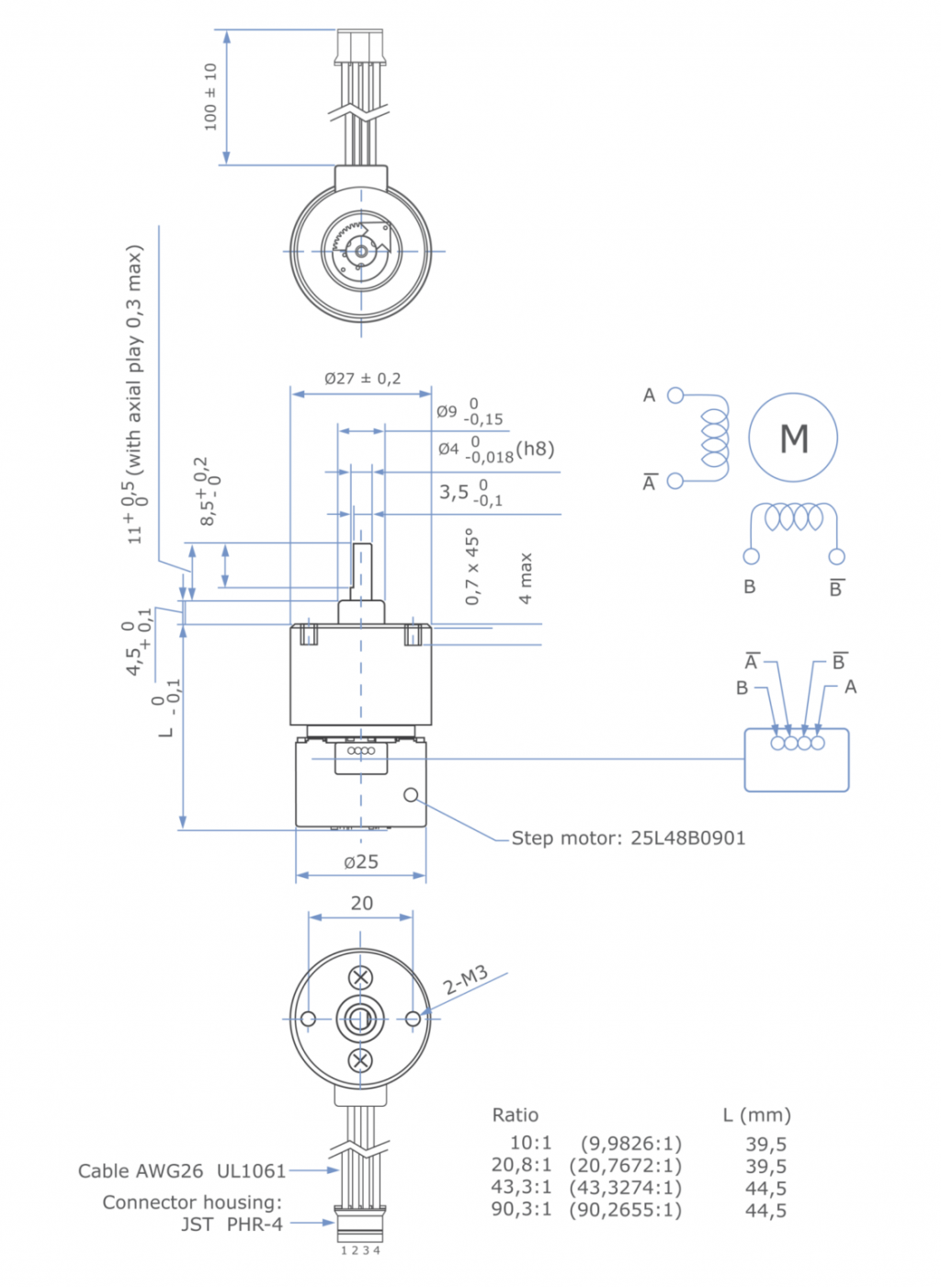

Scheda tecnica_serie SM155
